NVIDIA MMA1Z00-NS400-T SINGLE PORT TRANSCEIVER, 400GBPS,400GbE, QSFP112, MPO12 APC, 850NM MMF, UP TO 50M, FLAT TOP

The transceiver is used for connecting 400G and 200G BlueField-3/QSFP112 Data Processing Units (DPU) or ConnectX-7/QSFP112-based, PCIe-bus network cards. Typically, the transceiver is linked to a single 800Gb/s Twin-port 2x400G OSFP transceiver (MMA4Z00-NS) in a Spectrum-4 Ethernet switch.

全店，Free Shipping

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

商品描述

送貨及付款方式

顧客評價

商品描述

Introduction

The NVIDIA MMA1Z00-NS400-T is an Ethernet (ETH) 400Gb/s, Single-port, QSFP112, multimode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Short Reach 4-channel design uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using OM4 multimode fiber and assumes two optical patch panels in the link. It has identical design and internals as the OSFP version, only with different connector shells.

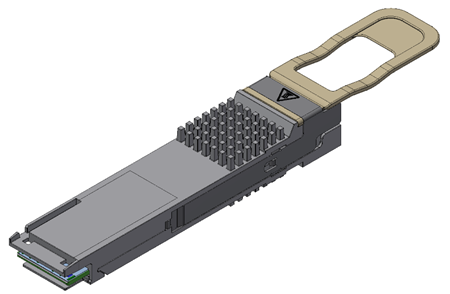

The QSFP112 shell has a flat-top and utilizes the riding heat sink (cooling fins) on the ConnectX-7 or BlueField-3 connector cage. The small bumps near the pull tab provide additional cooling and remains outside the host connector cage.

When linked to 1:2 splitter fiber cable split end has only 2 channels and will activate only 2-channels in the 400G transceiver automatically creating a 200G speed and reducing power.

Multimode optics is denoted by a tan-colored pull tab and aqua-colored optical fiber. Green plastic shell on the MPO-12/APC optical connector denotes Angled Polish Connector (APC) and is not compatible with the aqua colored Ultra-flat Polished Connectors (UPC).

NVIDIA’s Single-port and Twin-port transceiver combinations guarantee optimal operation in NVIDIA end-to-end Ethernet systems and a rigorous production tested to ensure the best out-of-the-box installation experience, performance, and durability.


Note

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

Key Features

ETH support
400G multimode
4-channels of 100G-PAM4 modulation
QSFP112 connector shell
850nm wavelength VCSEL laser
Single MPO-12/APC optical connector
Max reach:
30m on OM3
50m on OM4
8.5W max (4-channels)
5.5W max (2-channels)
Single 3.3V power supply
Class 1 laser safety
Hot pluggable, RoHS based
QSFP112 MSA
CMIS 4.0 compliant
Case temperature range of 0°C to +70°C

Applications

Used in ConnectX-7/QSFP112 adapters or BlueField-3/QSFP112 DPUs linked to Twin-port transceivers in 2x400G ETH switches
