NVIDIA MMS1X00-NS400 single port transceiver, 400Gbps, NDR, QSFP112, MPO, 1310nm SMF, up to 100m, flat top

The transceiver is used for connecting 400G and 200Gb/s BlueField-3/QSFP112 Data Processing Units (DPU) or 200Gb/s ConnectX-7/QSFP112-based Host Channel Adapter (HCA) PCIe-based network cards.

全店，Free Shipping

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

商品描述

送貨及付款方式

顧客評價

商品描述

Introduction

The NVIDIA MMS1X00-NS400 is an InfiniBand and Ethernet 400Gb/s, Single-port, QSFP112, DR4 single mode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Datacenter Reach 4-channel (DR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters and assumes two optical patch panels in the link. It has identical design and internals as the OSFP version, only with different connector shells.

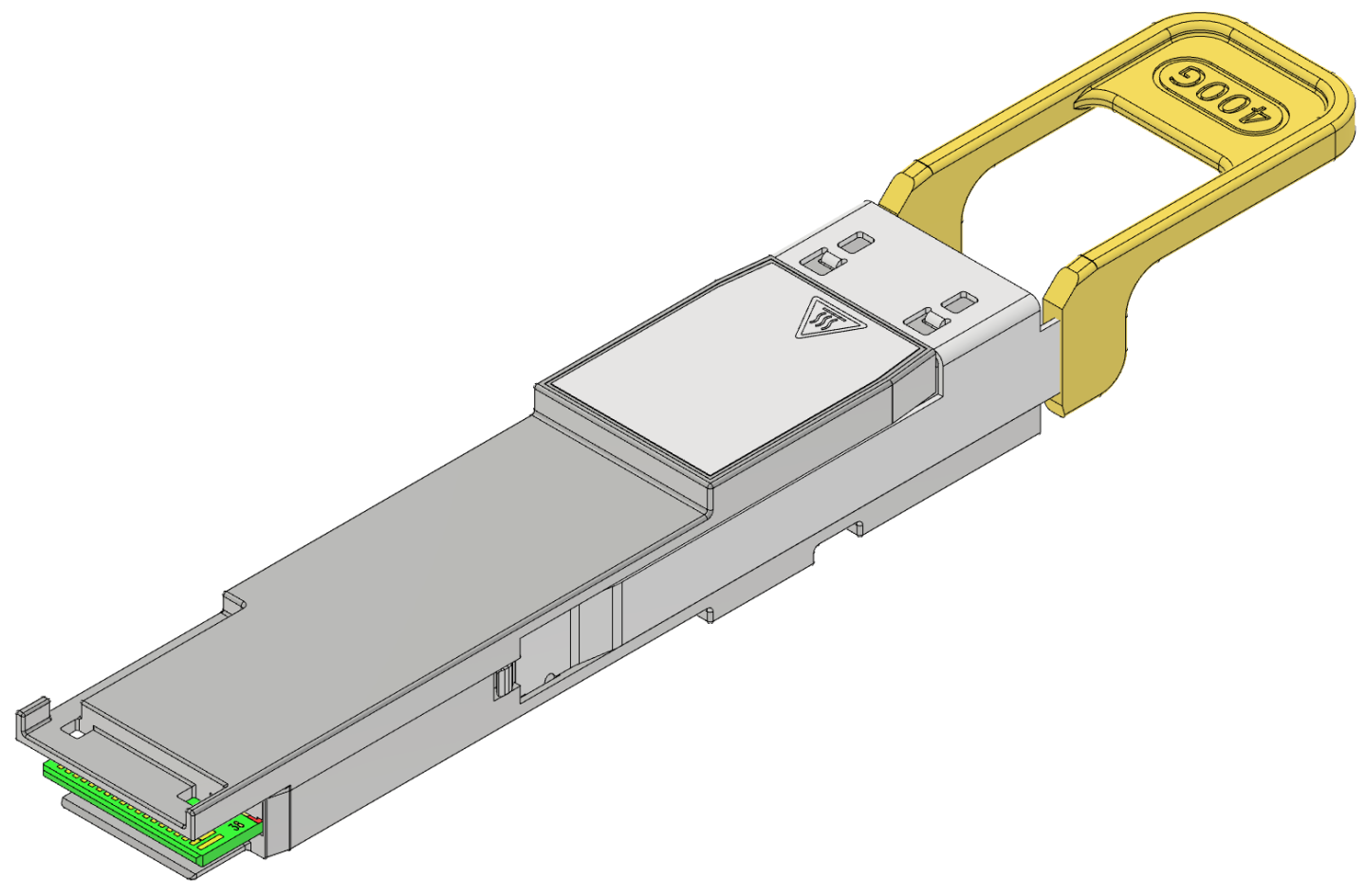

The transceiver firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the switch attached to. The QSFP112 shell has a flat-top and utilizes the riding heat sink (cooling fins) on the ConnectX-7 or BlueField-3 connector cage. The surface near the pull tab provides additional cooling and remains outside the host connector cage.

Single mode optics is denoted by a yellow-colored pull tab and optical fiber. Green plastic shell on the MPO-12/APC optical connector denotes Angled Polish Connector (APC) and is not compatible with the aqua colored Ultra-flat Polished Connectors (UPC).

NVIDIA’s Single-port and Twin-port transceiver combinations guarantee optimal operation in NVIDIA end-to-end InfiniBand systems and a rigorous production tested to ensure the best out-of-the-box installation experience, performance, and durability.


Note

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

Key Features

IB and ETH support
400G DR4 single mode transceiver
4-channels of 100G-PAM4 electrical and optical modulation
QSFP112 connector shell
1310nm EML single mode laser
Single MPO-12/APC optical connector
500m max reach
9.5W max (4-channels)
Single 3.3V power supply
Class 1 laser safety
Hot pluggable, RoHS compliant
Adaptive Tx input equalizer
QSFP112 MSA
CMIS 4.0 compliant
Case temperature range of 0°C to +70°C

Applications

Used in ConnectX-7/QSFP112 adapters or BlueField-3/QSFP112 DPUs linked to Twin-port transceivers in 2x400G IB/EN switches
